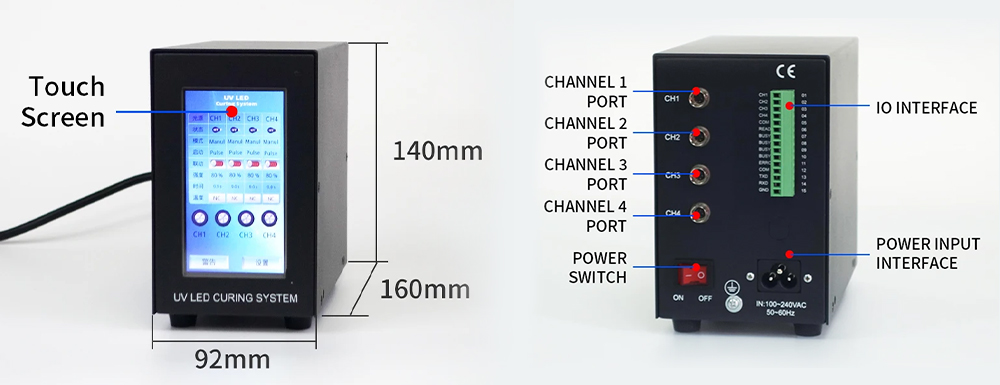

Spot Curing System-4CH

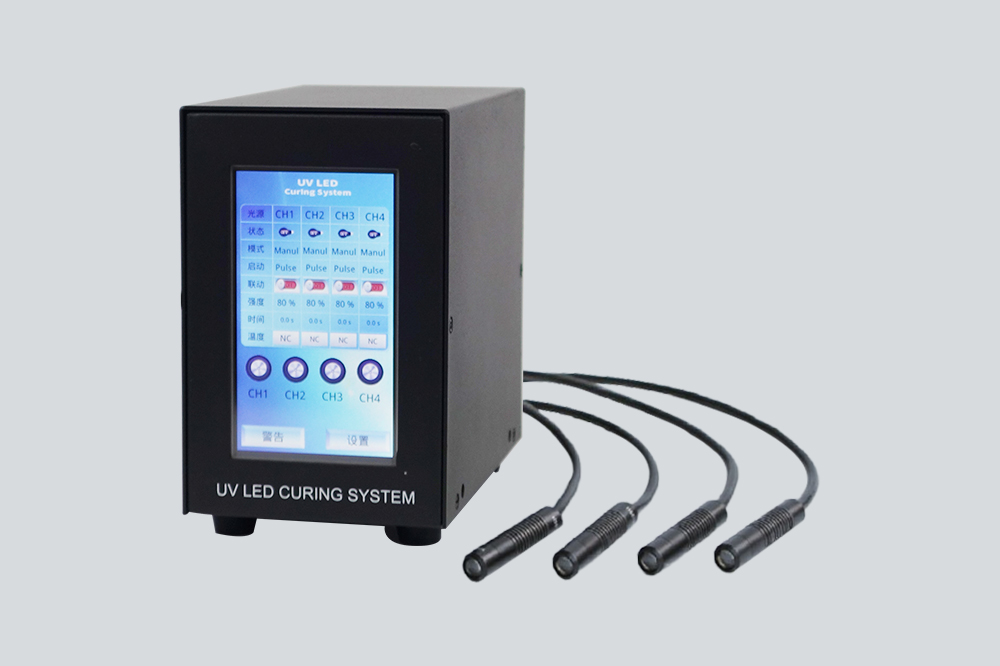

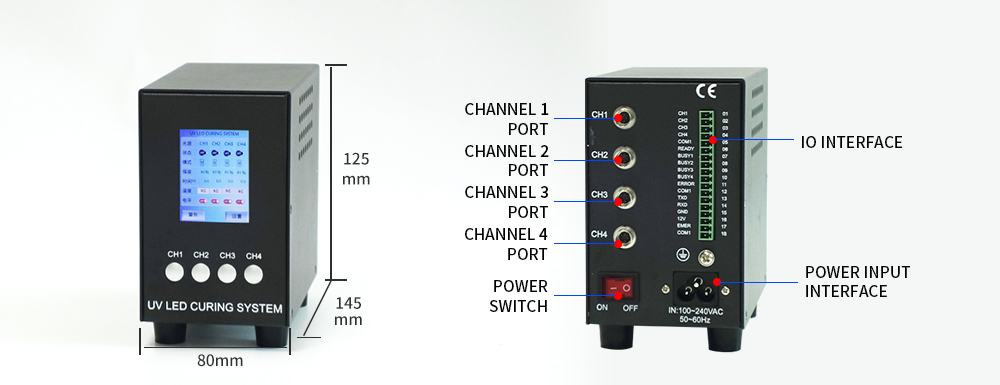

UV LED Spot curing system

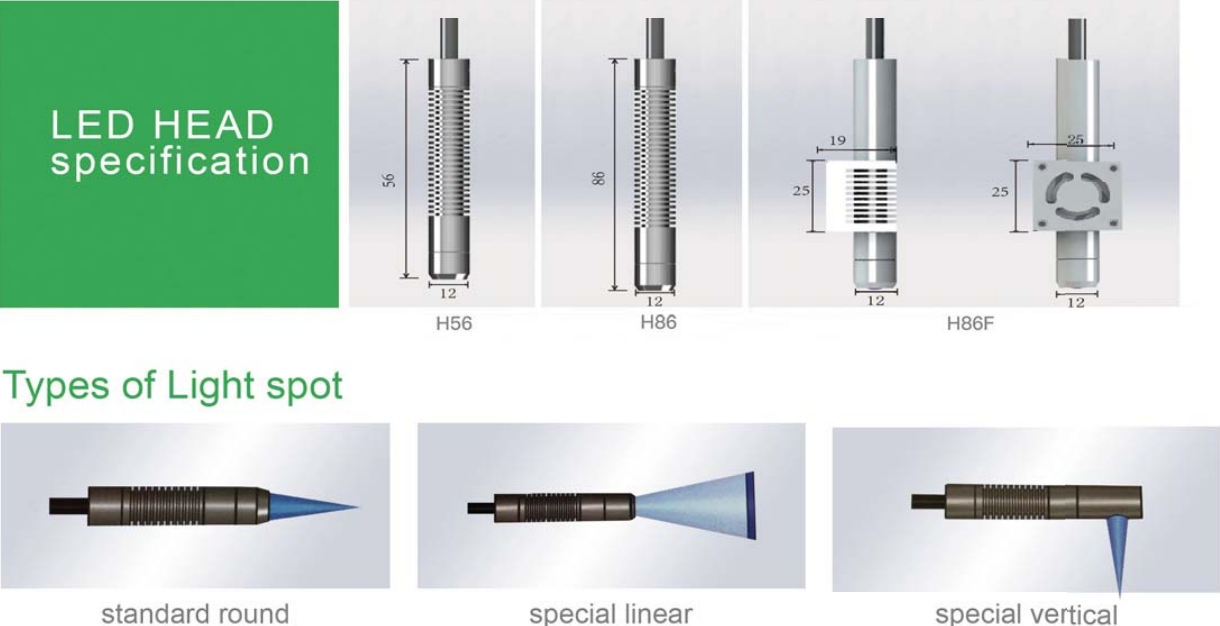

LED HEAD

Main fatures

.The highest output power 18W/cm? can reach rank 1 in industry by using aspherical lens

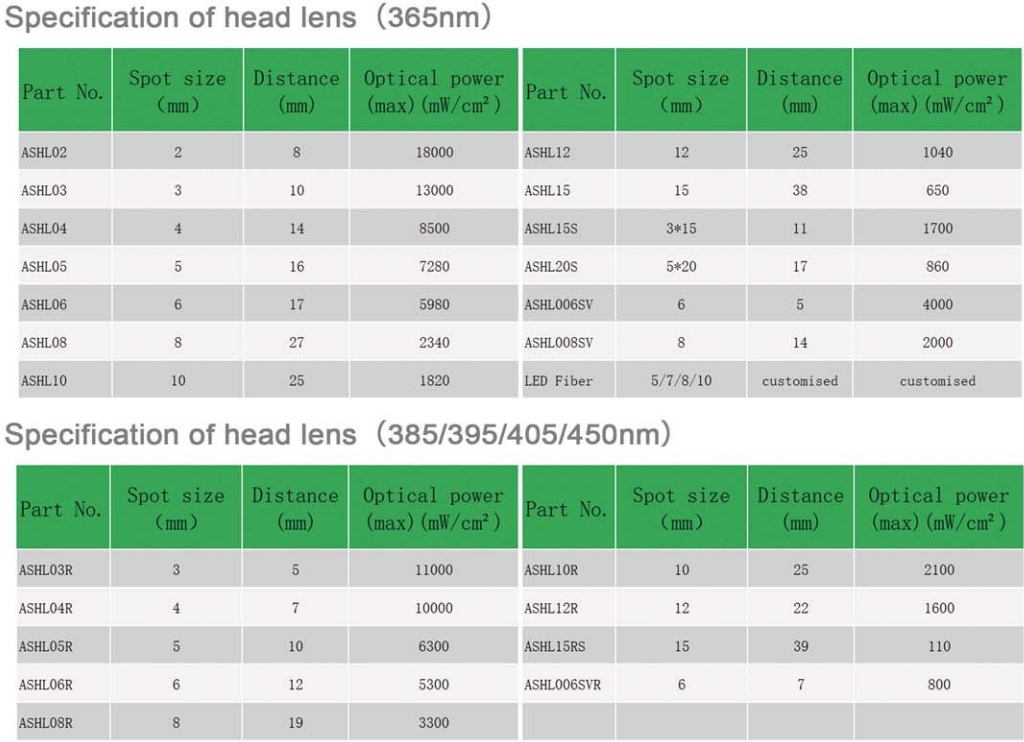

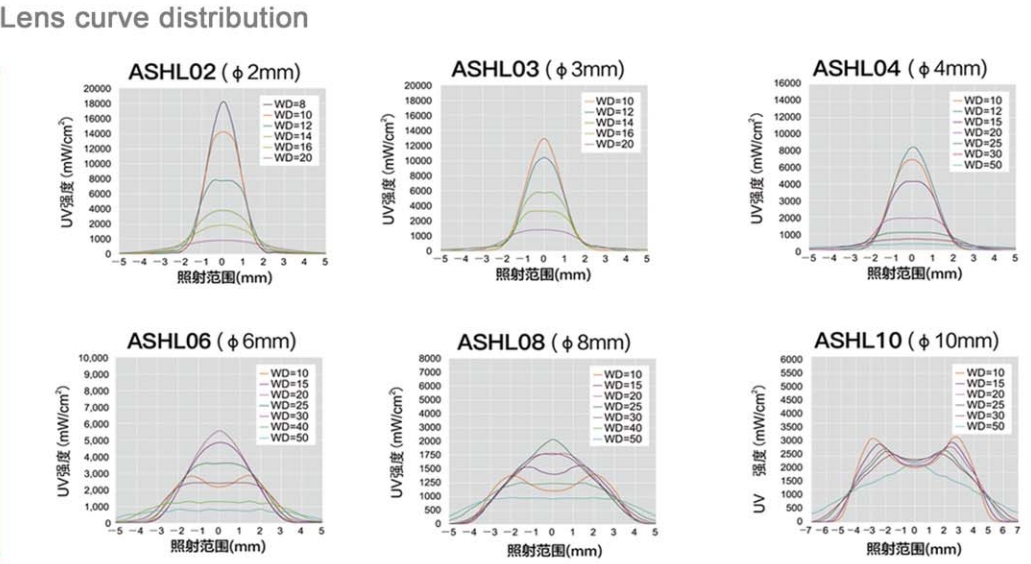

Our aspherical lens can make the spot uniformity optimal*lrradiation spot can be a variety of choices, numbers of choice ranked first in industry.Spot shape and size from standard 2/3/4/5/6/7/8/10/12/15 to special linear and vertical* The core materials of LED HEAD are all made of world-famous brands, such as NICHIA LED, DOWCorning, HOYA quartz lens.

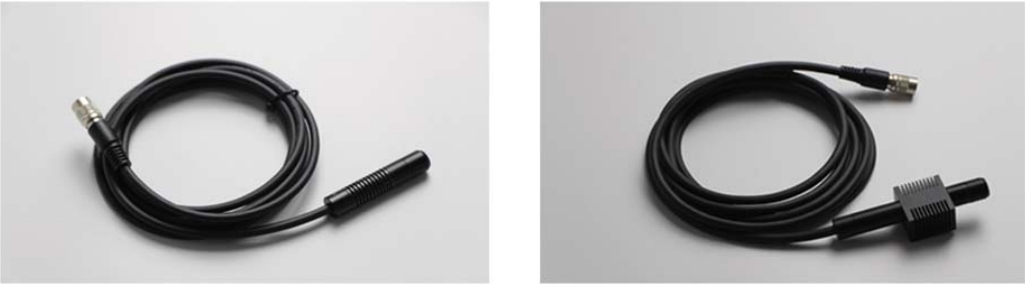

. We use imported bending resistant cable,it can be made of japanese solar robot too, according to customers(1,000w bending under R30mm).

Standard connection cable is 2M, special can be customized 5M or longer

LED HEAD with fan series can be made according to customer

LED HEAD life up to 20,000 hours

UV LED Spot curing system
