Line light sourceintegrated curing machine15-300

UV automatic control function and programmable UV irradiation function

Efficient and stable UV irradiation

In order to make it easier for users to obtain high-quality bonding strength and hardening effects, better UV irradiation intensity correction

and irradiation adjustment functions can be selected

High output power of more than 8000mW/cm2!

Automatically correct UV intensity

Strongly stable UV irradiation

70% energy saving

Touch screen display setting method

Communication control and parameter adjustment are possible

Perfectly matches the application of automated production lines

Overview

Stable power output, best-selling for many years

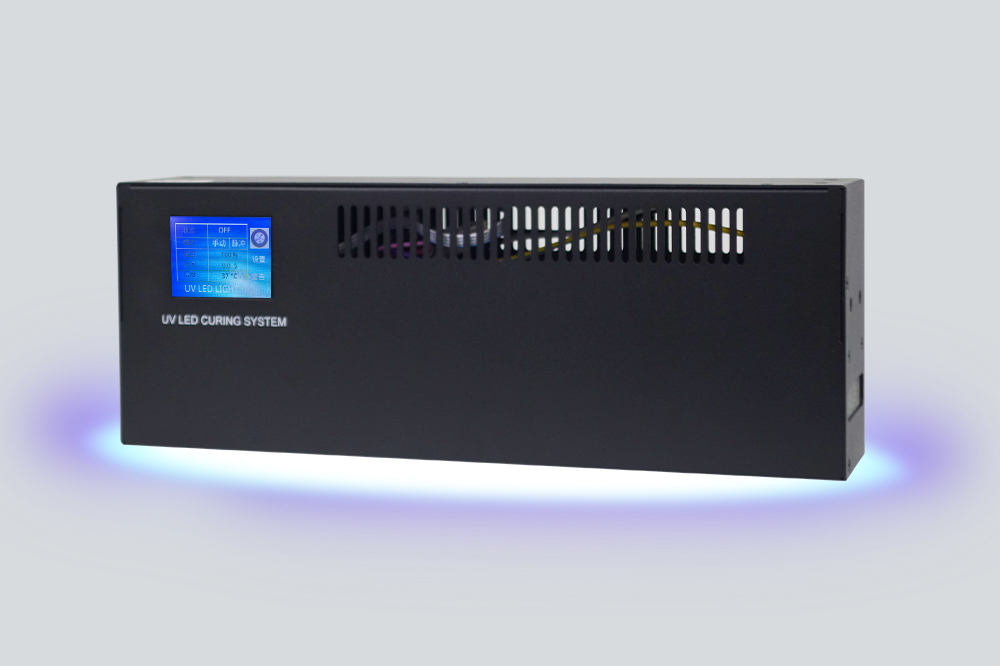

Compact UV-Led line light curing system

Lighting mode: LED, service life 20000H**

Wavelength: optional 365, 385, 395, 405nm

High-efficiency UV irradiation

Higher UV intensity: 8000mw/cm^2

Optional free splicing of multiple light sources

Can also be used for long-distance irradiation, covering a wide range of applications

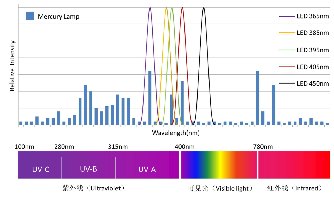

High and wide range of UV wavelengths

Highly efficient irradiation of ultraviolet rays, not only providing the 365nm wavelength required for UV curing, but also other short

wavelengths can be selected, surface stickiness is immediately solved, and the effect of rapid curing is achieved.

Others

Suitable for 110-220V AC voltage, corresponding to world standards.

No need to replace consumables

With forced air supply device, extend LED life, also suitable for low-temperature materials

No preheating time required, turn on and light up immediately

Fully shockproof design, no fear of falling

Can set time, life monitoring and abnormal alarm

* Test of irradiation intensity, measured using Awellcure-UV measuring instrument

**The service life is based on a specific normal use environment, and the life is estimated under specific normal use conditions

Optical characteristics

Install optical lens to improve uniformity

Optional spot non-split design, higher uniformity

Multiple optical lens options, perfect for various dispensing applications

Competitors in the same industry can only achieve short-distance irradiation applications, Awellcure can choose long-distance 60mm irradiation,

and the maximum power can reach 15w/cm^2
