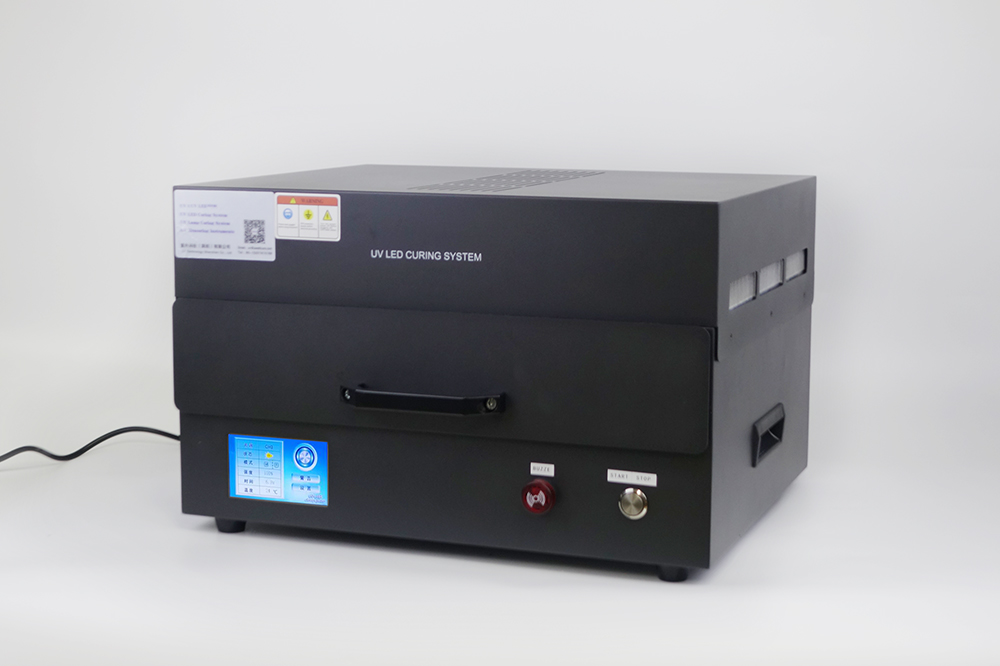

DRAWER TYPEUVLED CURING BOX

UV automatic control function and programmable UV irradiation function

High-efficiency and stable UV irradiation

In order to make it easier for users to obtain high-quality bonding strength and hardening effects, better UV irradiation intensity correction and irradiation adjustment

functions can be selected

High output power of more than 700mW/cm2!

Automatically correct UV intensity

Strongly stable UV irradiation

70% energy saving

Touch screen display setting method

Communication control and parameter adjustment are possible

Overview

Stable power output, best-selling for many years

Compact UV-Led curing box

Lighting mode: LED, service life 20000H**

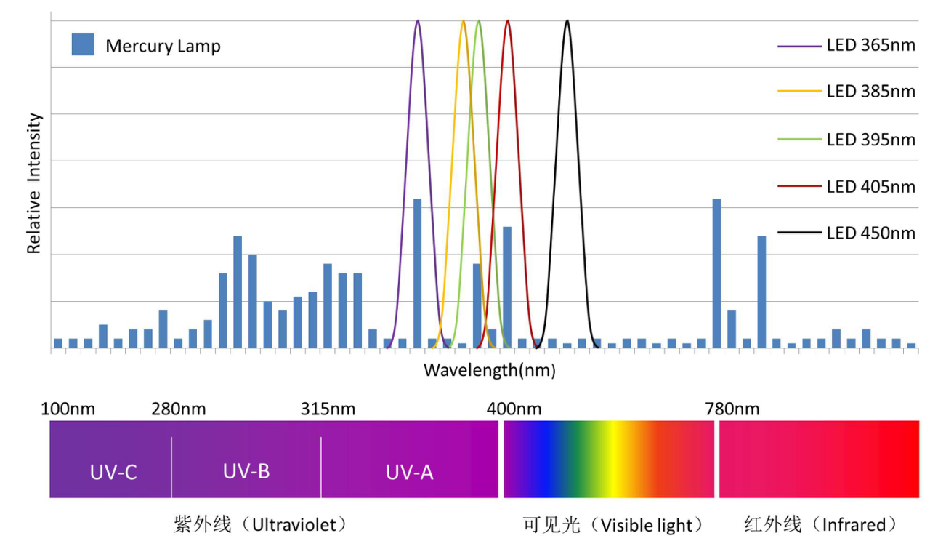

Wavelength: optional 365, 385, 395, 405nm

High-efficiency UV irradiation

Higher UV intensity: 700mw/cm^2

Can also be used for long-distance irradiation, covering a wide range of applications

High and wide range of UV wavelengths

Highly efficient ultraviolet irradiation, not only provides the 365nm wavelength required for UV curing, but also can choose other short wavelengths, surface stickiness is

immediately solved, achieving the effect of rapid curing.

Others

Suitable for 110-220V AC voltage, corresponding to world standards.

No need to replace consumables

With forced air supply device, extend LED life, also suitable for low-temperature materials

No preheating time required, turn on and light up immediately

Fully shockproof design, no fear of falling

Can set time, life monitoring and abnormal alarm

* Data on irradiation intensity, measured based on 10mm using Awellcure-UV measuring instrument

**Life expectancy is based on a specific normal use environment, life expectancy under specific normal use conditions

Other features

Evenly arrange LEDs to achieve uniform irradiation

Built-in exhaust device to remove volatile glue

Built-in irradiation indicator and alarm light

Customizable products with composite wavelength and individual control
